Calcite micro powder grinding mill

The application of calcite powder:

Calcite powder is coarse whiting, referred to "heavy calcium carbonate" , the main component is heavy calcium carbonate, heavy calcium carbonate is also referred to as the "farmers", usually used for packing. Calcite powder is widely used in artificial stone, artificial floor tile, natural rubber, synthetic rubber, coating, plastic, composite new calcium plastics, cable, papermaking, toothpaste, cosmetics, glass, medicine, paint, printing ink, cable, electric insulation, food, textile, feed, adhesive, sealant, asphalt, building materials, roofing building supplies, fire the ceiling and daily chemical products as filler.And, how to processed calcite into powder? we recommend clirik calcite micro powder grinding mill.


Production Line Configuration of Calcite micro powder grinding mill:

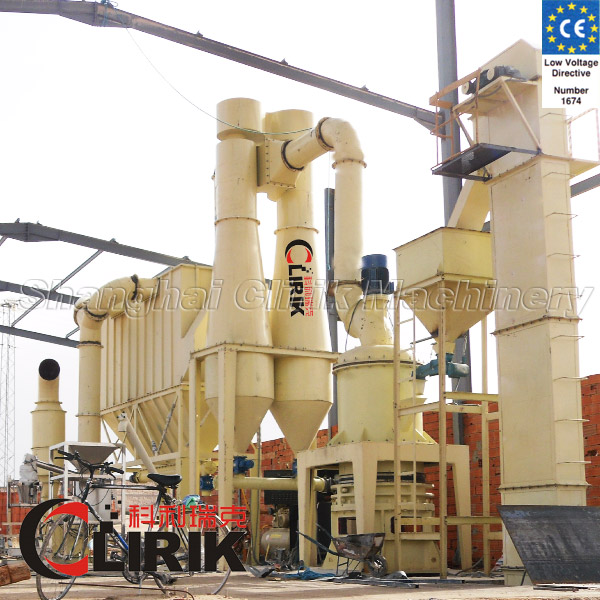

The whole set  Calcite micro powder grinding mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.








Working Principle of Calcite micro powder grinding mill

The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.


Features of Calcite micro powder grinding mill:

1. High efficiency

Under the same final size and power, the product capacity of calcite micro powder grinding mill is twice than jet mill and agitation mill.

2. Longer lifetime of spare parts

The roller and ring are made of special material, which improve the grinding efficiency a lot. For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical shaft impact crusher and turbo-mill. Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.

3. High safety and reliability:

There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.

4. High fineness of products

The product fineness can reach D97≤5μm.

5. Environment friendly

The application of pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard.



Model and technical data of Calcite micro powder grinding mill

Model

HGM80

HGM90

HGM100

HGM100A

HGM125

Ring Diameter(mm)

800

900

1000

1000

1250

Ring Number/pcs

3

3-4

3-4

4

4

Roller Number/pcs

21

24-32

27-36

27-36

40-44

Main Shaft Speed/r. p. min

230-240

200-220

180-200

180-200

135-155

Input Size/mm

≦15

Finished Size/um

5-47(325-3000)

Capacity t/h

0.4-4.5

0.4-5.5

0.4-6.5

0.4-7.5

0.7-10

Outlet Size L*W*H/m

13.9*4*6.2

14.7*4.8*7.2

18*4.6*8.6

18*4.6*8.6

14*9*10
