coal ash micro powder grinding mill

Introduce Of coal ash micro powder grinding mill:

With industrial development, the field of fly ash treated and use will be significantly expanded, Clirik coal ash  micro powder grinding mill is inevitably your first option.coal ash could be used to deal with the cement plant auxiliary equipment, which can promote the efficiency of the concrete. Coal burning fly ash known as fly ash, which is the major solid waste from powder stations. Fly ash has been widely used in mixtures of concrete, bricks, ceramics and embankment construction.


Clirik coal ash micro powder grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with mohs’s hardness under six, such as calcite, kaolins, limestones, calcite, barites, carbon black, mica, quartz etc. With the development of high-tech industry, fine and superfine powder is widely applied in various fields, so Clirik coal ash micro powder grinding will become more and more requires by various industries.




Working principle of coal ash micro powder grinding mill:

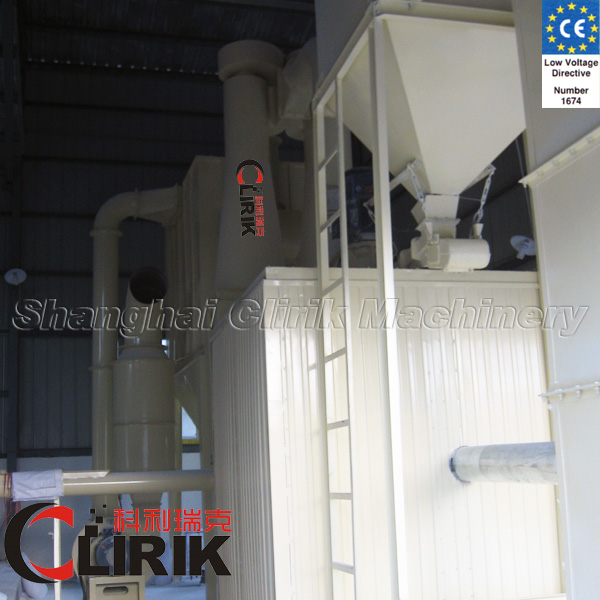

Clirik coal ash micro powder grinding mill mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.The high-pressure air blower constantly inhales air within the grinding mill and,  in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.


Model and technical data of coal ash micro powder grinding mill:

Model

HGM80

HGM90

HGM100

HGM100A

HGM125

Ring Diameter(mm)

800

900

1000

1000

1250

Ring Number/pcs

3

3-4

3-4

4

4

Roller Number/pcs

21

24-32

27-36

27-36

40-44

Main Shaft Speed/r. p. min

230-240

200-220

180-200

180-200

135-155

Input Size/mm

≦15

Finished Size/um

5-47(325-3000)

Capacity t/h

0.4-4.5

0.4-5.5

0.4-6.5

0.4-7.5

0.7-10

Outlet Size L*W*H/m

13.9*4*6.2

14.7*4.8*7.2

18*4.6*8.6

18*4.6*8.6

14*9*10

Note:This specification is just referencing, any changes are subject to the products.
