Coarse powder mill;Coarse powder mill supplier

Introduce Of Coarse powder mill

Coarse powder mill is also called European version of the coarse hammer crusher, engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPa into fine and micro fine powders, it is widely used in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.Shanghai clirik machinery co., LTD.is a very famous manufacturer and suppiler for Coarse powder mill.

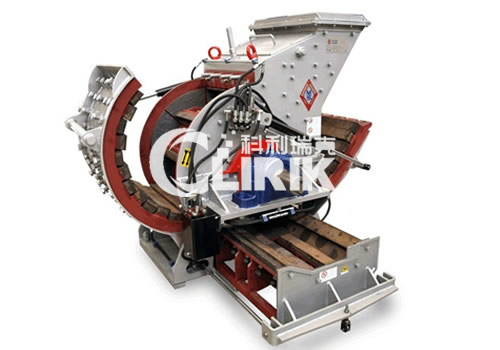

Coarse powder mill mainly consists of frame, rotor, support iron and grate bars. The frame is divided into two parts: upper part and lower part, which are welded by steel plates after being cut. Liners made of high manganese steels within the frame can be replaced after being worn out. The rotors consist of turnplates, pin shafts, and hammers which are grouped regularly in the main shaft. The main unit drives the main shaft through the motor and triangle belts, which, in turn, rotates the rollers. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then thrown fiercely to the support iron for further crushing. Qualified materials crushed will be screened out and exit from the gap of the grate bars while the unqualified will be left in the crushing cavity to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the grate bars. The gap between the rotors and the grate bars can also be adjusted according to different requirement. To avoid the plugging of the crusher, the proportion of water for the crushing materials is no more than 20%.


The advantages of Coarse powder mill:

1.High manufacturing capacity and low power consumption;
2.Uniform particle size with high crushing ratio;
3.Simple structure;
4.Easy operation and low investment.

Model and technical data of  Coarse powder mill:



 Type  PC4008-75  PC4012-90  PC4015-132
 Rotor Diameter (mm)  750  900  1150
 Rotor Width(mm)  800  1200  1500
 Rotor Speed r/min  800-1000  800-1000  550-800
 Max Feeding Size (mm)  <70  <90  <100
 Finished Size(mm)  0-3  0-3  0-3
 Capacity (T/H)  35-50  50-70  70-100
 Power (KW)  55-75  75-90  110-132
 Hammer Number  18  16  32
 L*W*H/mm Layout Size  2310*1665*1610  2840*2100*2020  3720*2650*2540
