800 Mesh Kaolin Clay Powder Grinding Mill Machine

Date:2021-11-17 11:29:24

Kaolin Clay is a common clay mineral with good dispersibility, low impurity content and high comprehensive utilization value. It has a wide range of applications and is mainly used in many industries such as chemical engineering, machinery, metallurgy, construction, industry, and engineering. It has greatly promoted the development of various fields.

Kaolin belongs to the category of non-metallic minerals. The kaolin clay powder grinding mill machine can grind kaolin into 200-2500 mesh powder, which can improve the utilization rate of kaolin.

kaolin clayKaolin Clay


To process 800 mesh ultra-fine kaolin powder, you need to use the HGM series of ultrafine powder grinding mill

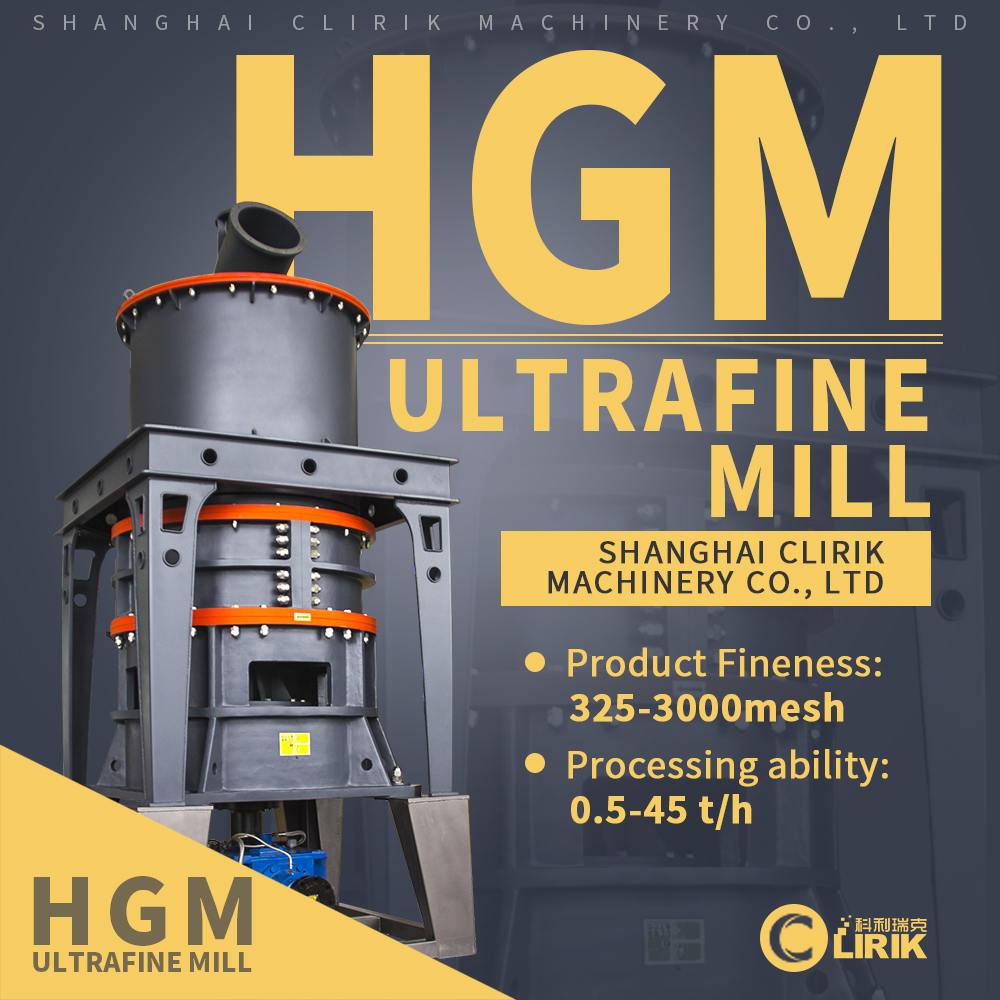

HGM ultrafine powder grinding mill for kaolin clay
HGM ultrafine powder grinding mill for kaolin clay


Composition of kaolin clay grinding mill


HGM series ultrafine powder grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.


The working principle of kaolin clay grinding mill


After the large piece of kaolin is crushed into small particles by the crusher, it is sent to the silo by the elevator, and then the kaolin is evenly sent to the bulk tray on the upper part of the turntable in the main machine through the feeder and the inclined guide tube.

When the mill is working, the main motor drives the main shaft and the turntable to rotate through the reducer, and the turntable drives dozens of grinding rollers to rotate and roll in the ring through the shaft pin. The kaolin scatters to the periphery and falls into the grinding cavity under centrifugal action, and is stamped, rolled and ground by the grinding roller in the ring.

Kaolin is pulverized in multiple layers and repeatedly ground into powder. With the continuous suction of the air inside the equipment by the high-pressure fan, the kaolin after multiple layers of crushing is brought into the classifier along with the continuously entering air.

The high-speed rotating impeller screens them, and the unqualified kaolin powder falls back and regrinds, and the qualified kaolin powder enters the cyclone dust collector with the airflow, the dust falls, and the finished product is discharged by the discharge valve at the bottom. A small part of the fine dust enters the dust collector with the airflow and adheres to the surface of the filter bag. The pulse valve controls the high-pressure airflow to be jetted from the inside of the filter bag instantaneously, and the dust adhering to it falls down due to the sudden shaking of the filter bag, and the conveyor at the bottom sends the materials collected in two places for finished product packaging. The filtered clean air is finally discharged at the air outlet of the muffler.


Advantages of kaolin clay grinding mill



1. HGM Kaolin Ultrafine Mill is more efficient


In the case of the same fineness of the finished product and the same motor power, the output is more than-times higher than that of jet mills, stirring mills, and ball mills, and the energy consumption is 30% lower.

2. HGM Kaolin Ultrafine Mill has high safety


Because there are no rolling bearings and screws in the grinding cavity, there is no problem that the bearings and their seals are easily damaged, or that the machine is damaged due to the loosening of the screws.

3. Long service life of wearing parts of HGM Kaolin Ultrafine Mill


The grinding roller and grinding ring are forged with special wear-resistant materials, which greatly improves the durability. In the case of the same fineness of materials and finished products, the service life of the wearing parts of impact crushers and turbo crushers is 2-3 times longer,-generally up to more than one year; when processing calcium carbonate and calcite, use
The service life can reach 2 to 5 years, and high hardness materials will shorten the service life of wearing parts.


4. HGM Kaolin ultra-fine mill has high fineness and a wide range of fineness adjustment


Compared with Raymond mill and other coarse grinding products with the finest 325 mesh (47 microns), this ultra-fine mill can produce finer powder with a fineness of 200-2500 mesh (74-5 microns). ) Can be adjusted arbitrarily. It can fully meet the requirements of 800 mesh kaolin grinding.


5. HGM kaolin ultra-fine mill has advanced intelligent frequency conversion speed regulation device


The device makes the materials evenly put into grinding, the speed of the main machine matches different materials, the particle size of the finished product is more stable, the particle size cutting precision is high, and the output and efficiency are improved to achieve the effect of reducing power consumption.



CLIRIK Machinery-Professional kaolin clay powder grinding mill supplier


The ore crushing production line designed by Shanghai Clirik Machinery Co., Ltd. is a large-scale ore production line manufacturer. Professionally provide high-quality kaolin mills.
Well received and trusted by customers. CLIRIK provides services such as on-site installation of ore production line equipment and free trial machine.

kaolin clay powder grinding mill supplier


Turnkey projects

CLIRIK specializes in the production of ultra-fine mills and has a professional R&D, production, sales and after-sales team. Provide you with a full set of services from production line design to on-site installation.


R & D design

CLIRIK has a technical research and development team of more than ten people, and holds a number of design patents. CLIRIK continuously improves equipment performance according to changes in the market and customer needs. Provide you with quality products that keep pace with the times.


Quality assurance

CLIRIK mill products have CE, ISO and other quality certifications, and third-party testing agencies test the quality, so you can rest assured.


Strategic location

The CLIRIK factory is located in Shanghai’s Pudong New Area, only one hour’s drive from Yangshan Port, the largest port in Shanghai. Convenient delivery, only half an hour's drive from Shanghai Pudong International Airport. It is convenient for customers to get on and off the bus.


Local customer site, more intuitive

As an export manufacturer with more than ten years of experience, CLIRIK has its own customer sites in many countries for you to visit.
